Shear Power Corp.

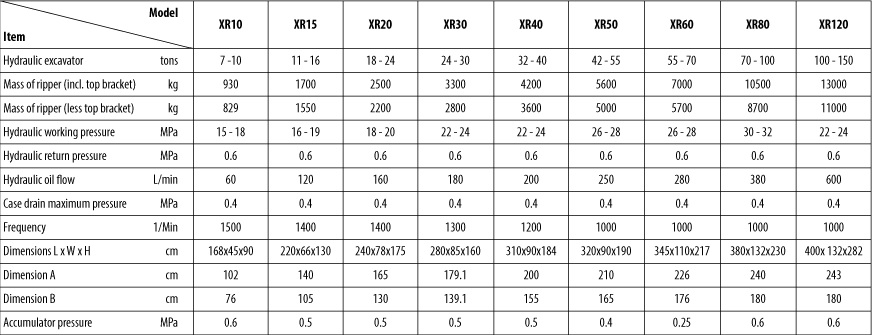

XR40
|
• Hydraulic excavator 32 - 40 tons
• Mass of ripper (incl. top bracket) 4200 kg
• Mass of ripper (less top bracket) 3600 kg
• Hydraulic working pressure 22 - 24 MPa
• Hydraulic return pressure 0.6 MPa
• Hydraulic oil flow 200 L/min
• Case drain maximum pressure 0.4 MPa
• Frequency 1200 (1/min)
• Dimensions L x W x H 310x90x184 cm
• Accumulator pressure 0.5 MPa

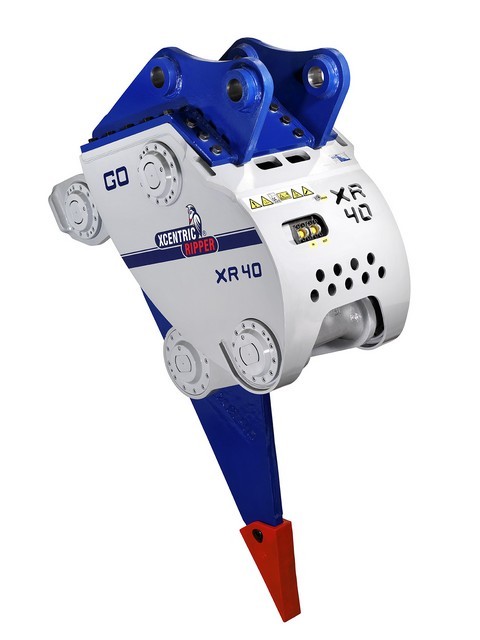

The Xcentric Ripper is an excavator attachment tool developed with the latest advances in excavation and demolition systems in mind. It meets the highest standards. It was patented by Xcentric Ripper international/Grado Cero Sistemas, S.LU., a trailblazer in the industry. Trough it's design an outstanding performace has been achieved, allowing more efficient work.
Made completely of wear-resistant steel, this attachment device is almost maintenance free, less noisy than any other excavation tool, can be used under water without loss of performance, and adapted to countless work sites. Thanks to it's uncomplicated mechanical design, which has no pricey components, the maintenance cost are very low and down times are ignorable.
The XR40 becomes the protagonist of the work site. In quarrying work excellent results are achieved with production volumes up to 120 m3 per hour. In trenching is unrivaled.
