Precision Meets Connectivity

Nov 27, 2015
The first cloud-based shaft alignment system ROTALIGN touch integrates shaft alignment into the overall plant assessment

Big Data, Cloud, Internet of Things, and Smart Factory: This is just a selection of the buzzwords currently dominating the discussions in many industry sectors. Beneath all of this is the need for almost complete automation of production and control processes.

However, the move towards self-controlling production plants increases the functional complexity and also drastically increases the requirements on the operating personnel. User-friendly and well-conceived solutions will therefore become even more important in the future.


Objective: Smart Factory

An important prerequisite for automation and plant management is the communication among the machines. For this reason, connecting all the components within a plant is a central prerequisite for setting up the so-called "Smart Factory." The vision of the Smart Factory also requires that that all upstream and downstream production processes be interconnected. Such a plant monitoring system also requires interfaces for the seemless data exchange between plant control, process visualization, and operator.


Misalignments

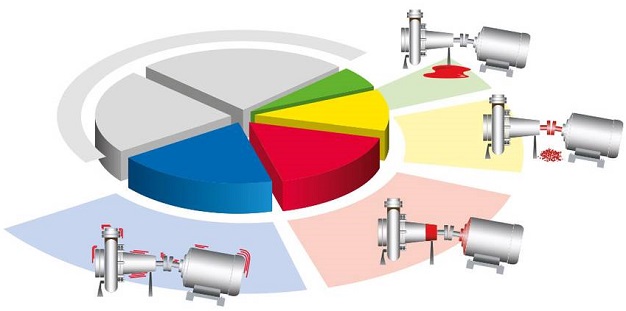

More than 50 % of all pump damage is caused by misalignment. The failure rate can be significantly reduced with the use of laser measuring systems.


Device connectivity is the measure of all things in maintenance as well

Comprehensive device connectivity, be it via a network, Bluetooth, Wi-Fi, or a Cloud solution is also a key requirement when implementing maintenance solutions. Connectivity is decisive for mobile service and maintenance teams. They often perform maintenance work at different sites and/or for different clients and need to be able to call up orders or send measurement reports at any time.


Alignment as part of the maintenance strategy

Intelligent condition monitoring of machines and plants is an important part of a comprehensive maintenance strategy. This also includes the precise alignment of machine shafts, as incorrect alignment causes more than 50 % of all damage to rotating machines.

Misalignment means:
• Premature wear of bearings, seals, shafts, and couplings
• High temperatures at bearing and coupling
• Excessive vibrations
• Loose foundation screwsBreaking (or tearing) of shafts on the inside
• Increased power consumption

If a new machine has been correctly aligned at commissioning, and regularly checked thereafter, a significant amount of operating and maintenance costs can be saved.


Laser shaft alignment with online functionality

Different shaft alignment methods are available. Shaft alignment using a straightedge, a feeler gauge, or a dial gauge can still be found. One of the disadvantages of these methods is that they cannot be integrated into a Smart Factory with self-controlling production processes as they do not offer connectivity. However, integration of maintenance tools into technologies of the Smart Factory are already possible: The laser-optical method is used worldwide and across many industry sectors as standard process for shaft alignment. Mobile devices, such as tablet PCs or smartphones, can communicate with the sensor system. Thus, measurement reports can be sent immediatly via e.g. e-mail.

Laser shaft alignment offers many outstanding advantages, including:
Graphical display of the alignment results
No coupling disassembly required during measurement
Accurate and repeatable results paired with high usability
Results can be electronically stored and printed
Display of vertical and horizontal corrections in real time during machine adjustment (Live Move mode)


ROTALIGN touch – the first Cloud-based alignment system for Smart Factories



Connectivity and usability paired with high precision: ROTALIGN touch, the latest member of the PRUFTECHNIK product family meets all the requirements for a modern and innovative alignment system.


Mobile connectivity at its best

As the only cloud-based laser shaft alignment system with touchscreen, the ROTALIGN touch can be fully utilized in the area of connectivity. Using the new ALIGNMENT RELIABILITY CENTER 4.0 software, alignment work orders e.g. to service teams can be sent in real time via the Cloud to mobile ROTALIGN touch devices worldwide. In return, the Wi-Fi- and Bluetooth-enabled devices can send measurement results back from any location directly via the Cloud and without PC connection. In combination with the integrated RFID scanner, the plant-specific tasks enable a fully automated and error-free machine identification. After the corrections, the alignment condition as left can be conveniently stored in the RFID tag of the machine. Using the inbuilt camera, the user can add photos to the measurement report for a more visual documentation.
