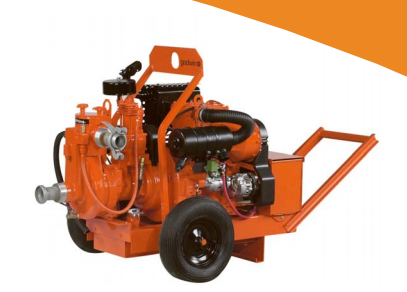

GODWIN CD75MA5

The Godwin Dri-Prime CD75MA5 pump offers flow rates to 370 USGPM and has the capability of handling solids up to 1.6" in diameter.

GODWIN CD75MA5
The Godwin Dri-Prime CD75MA5 pump offers flow rates to 370 USGPM and has the capability of handling solids up to 1.6" in diameter.
The CD75MA5 is able to automatically prime to 28' of suction lift from dry. Manual starting/stopping available through integral mounted control panel.
Indefinite dry-running is no problem due to the unique Godwin liquid bath mechanical seal design. Solids handling, dry-running, and portability make the CD75MA5 the perfect choice for dewatering and bypass applications.

Features and Benefits

Simple maintenance normally limited to checking fluid levels and filters.
Dri-Prime (continuously operated Venturi air ejector priming device) requiring no periodic adjustment. Venturi has no moving parts for simple, reliable operation.
Extensive application flexibility handling sewage, slurries, and liquids with solids up to 1.6" in diameter.
Dry-running high pressure liquid bath mechanical seal with high abrasion resistant solid silicon carbide faces.
Close-coupled centrifugal pump with DriPrime system coupled to a diesel engine or electric motor.
All aluminum construction (stainless steel construction option available) with cast iron impeller.
Standard engine Kubota D722 (IT4 Flex).
