York Fluid Controls Ltd.
Mini Air Operated Diaphragm Pump - Versa-Matic Mini-Matic E8
Data:
Specifications
| English | Metric | |
| Flow Rate | ||
| adjustable to | 0-8.2 gpm | 0-31 lpm |
| Port Size | ||
| Inlet and Outlet | 3/8" NPTF (BSP) | |
| Air Inlet | 0.25" NPTF | |
| Air Exhaust | 0.25" NPTF | |
| Suction Lift | ||
| Dry | 11' | 3.4m |
| Teflon® Dry | 11' | 3.4m |
| Max. Particle Size | ||
| Diameter | 0.10" | 2.5mm |
| Shipping Weights | ||
| Polypropylene | 3.0 lbs | 1.4 kg |
| Kynar | 3.0 lbs | 1.4 kg |

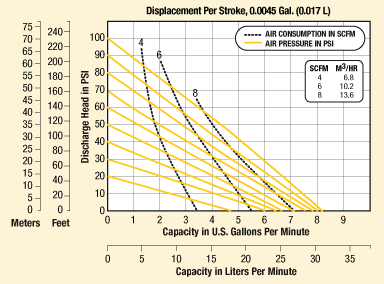

Performance Chart
Caution: Do not exceed 100 psig (6.8 bars)
air supply or liquid pressure.
