York Fluid Controls Ltd.
Air Operated Double Diaphragm Pumps - Elima-Matic E6
Data:
Specifications
| English | Metric | |
| Flow Rate | ||
| adjustable to | 0-4 gpm | 0-151 lpm |
| Port Size | ||
| Inlet and | 0.25" NPTF I.D. | |
| Outlet |
0.50" NPTM O.D. |
|
| Air Inlet | 0.25" NPTF | |
| Air Exhaust | 0.75" NPTF | |
| Suction Lift | 5.83' Dry/25.5' Wet (1.78m/777m) | |
| Max. Particle Size | (Diameter) 0.3125" 1mm | |
| Shipping Weights | ||
| Polypropylene | 3.38 lbs | 1.53 kg |
| PVDF | 4.13 lbs | 1.87 kg |
| Groundable Acetal | 5.00 lbs | 2.27 kg |

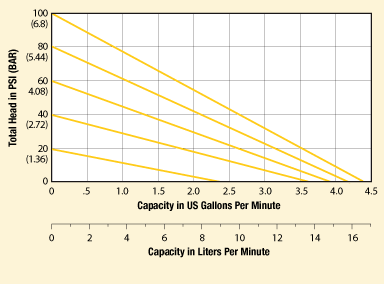

Performance Chart
Caution: Do not exceed 125 psig (8.5 bars)
air supply or liquid pressure.
