Ultra•Cor

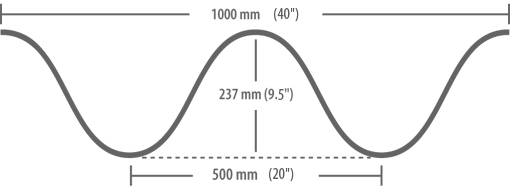

Data:

Revolutionary strength and durability.

Ultra•Cor is breaking new ground in efficient infrastructure solutions for the mining, transportation and public works sectors.

Available in a variety of shapes for the largest applications:

Box Culvert	Standard Arch	Low Profile Arch	Medium Profile Arch	High Profile Arch

AIL's Structural Steel Plate solutions are easy to ship and install.

Long-lasting and virtually maintenance-free, AIL’s corrugated metal structures ship and install quickly and economically, with minimal equipment and labour requirements. Our technical teams will guide you through the complete project to ensure its success.

Reinforced concrete footings are cast over the prepared site.	The first arch segment is completely assembled on the ground.
Then, it is lifted into place and bolted to the footings on either side.	The segments bolt into base channels, integrated into the concrete.
Plates then attach individually to make up other arch segments.	If specified, reinforcement ribs are then added.
Layers of engineered backfill are added in sequential lifts.	Then the completed road surface is added with safety barriers.
