Bolt-A-Plate
Data:

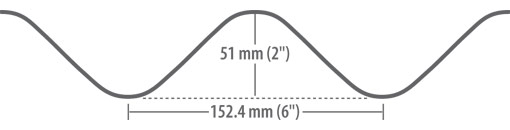

The corrugation profile of Bolt-A-Plate gives it strength to support heavy duty loads.
Bolt-A-Plate is available in the widest variety of shapes to suit many different applications:
![]() |
![]() |
![]() |
![]() |
![]() |
Standard Arch |
Low Profile Arch |
High Profile Arch |
Round |
Horizontal Ellipse |
![]() |
![]() |
![]() |
||
Vertical Ellipse | Pipe Arch | Pear Shaped |
AIL's Structural Steel Plate solutions are easy to ship and install.
Long-lasting and virtually maintenance-free, AIL’s corrugated metal structures ship and install quickly and economically, with minimal equipment and labour requirements. Our technical teams will guide you through the complete project to ensure its success.
![]() |
![]() |
Reinforced concrete footings are cast over the
|
The first arch segment is completely
|
![]() |
![]() |
Then, it is lifted into place and bolted to the
|
The segments bolt into base channels,
|
![]() |
![]() |
Plates then attach individually to make up
|
If specified, reinforcement ribs are then
|
![]() |
![]() |
Layers of engineered backfill are added in sequential lifts. |
Then the completed road surface is added with safety barriers. |
