Steel Bridge Decking

Data:

The steel deck is used in new construction or to rehabilitate existing structures.

Atlantic Industries Limited roll-forms 108 mm deep bridge flooring using Grade 50 steel in either pre-galvanized or bare steel. Bare steel can be painted.

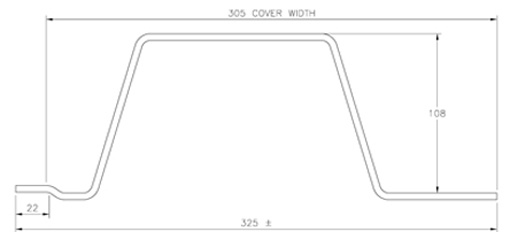

Steel Bridge Deck Profile

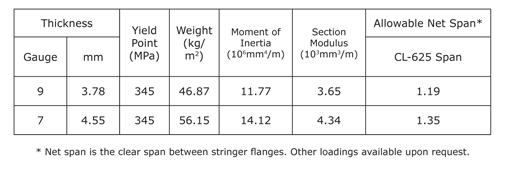

Engineering Data, 305mm x 108mm Bridge Decking
