Atlantic Industries Limited
Hi-Flo Pipe
Data:
Solve your stormwater problems with the improved hydraulics of a Hi-Flo Smoothwall Spiral Rib Pipe System from AIL.
To suit virtually any application, Hi-Flo Pipe and Pipe Arch come in many different diameters and lengths of 6 m or longer. Thicknesses range from 1.6 mm to 2.8 mm. It is available in Galvanized or Aluminized type 2 steel and is about 1/12th the weight of concrete pipe.

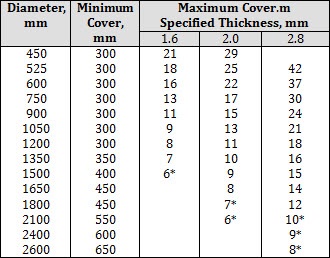

Round Pipe depth-of-cover limits (CL-625 live load)
* These installations require attention to backfill material and compaction methods used.
Section design properties
Properties are effective section properties at full yield stress. Dimensions are subject to manufacturing tolerances.

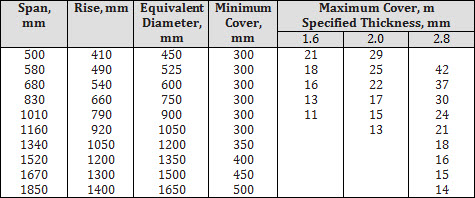

Pipe Arch depth-of-cover limits (CL-625 live load)
