Omer North America Inc.

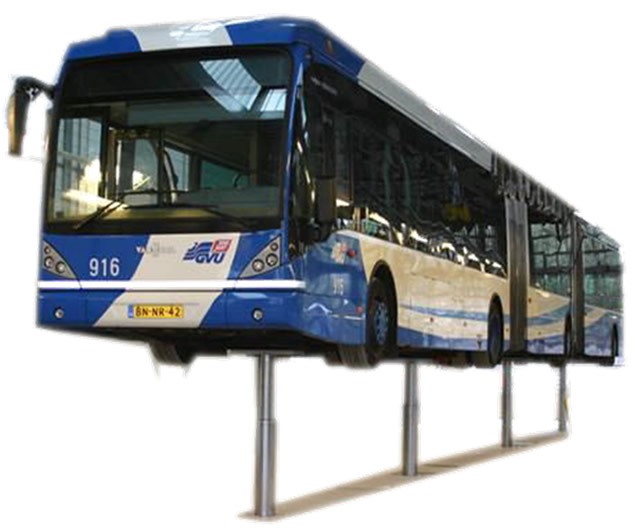

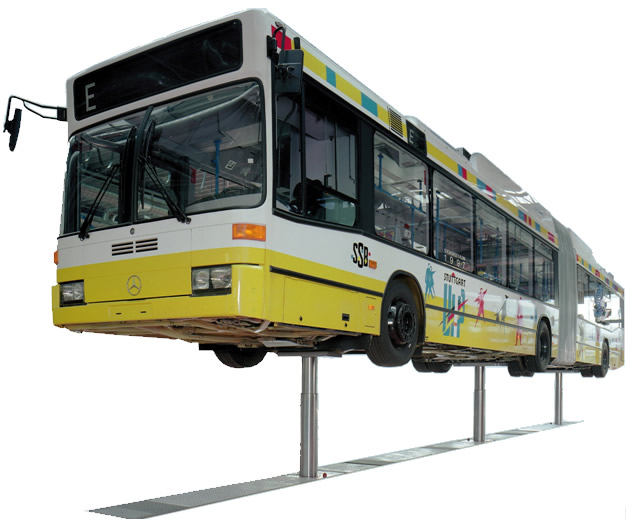

KarLiftSolutions In Ground Lift
Data:
Technical Data:
• 75" rise
• Ram 8.4"/7.4"
• Motor 3hp /ram
• Speed 50"/min.
• Drive motor 1HP
• Speed 100"/min.
• Power - 220/440/ 575 V
• Hydraulic Locks - every 3"
• Non Rotator - internal
• Bearings - bronze teflon coated
| 2-Ram lift - HVZ 214/190 | 3-Ram lift - HVD 214/190 | 4-Ram lift - HVDV 214/190 |
| Capacity 14 tons 32,000 lbs per ram | Capacity 14 tons 32,000 lbs per ram | Capacity 14 tons 32,000 lbs per ram |
|
Maximum Lifting Weight of 64,000 lbs |
Maximum Lifting Weight of 96,000 lbs |
Maximum Lifting Weight of 128,000 lbs |
| • 1 fixed ram and 1 movable ram |
• 2nd ram fixed • 1st and 3rd ram movable • Optional all rams are movable |
• 2nd and 4th ram fixed • 1st and 3rd ram movable • Optional all rams are movable |
 |
 |
 |
